HOMAN Cargo trucks

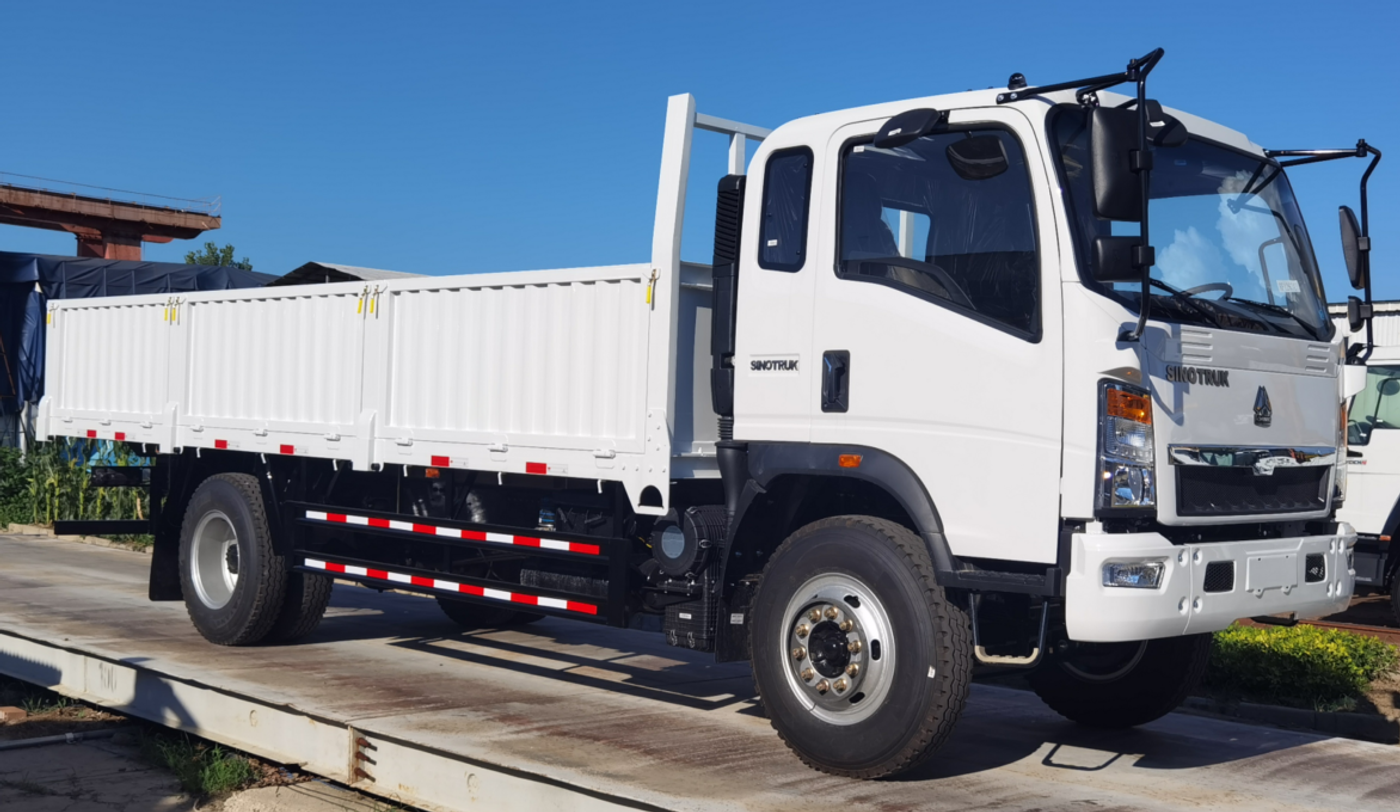

HOMAN 4×2 Cargo truck
Move everyday freight with a drop-side cargo truck. Compare body lengths, engines and axle configurations for your delivery routes.
Choose the power, then the features that change.
Your selected vehicle and configuration will be included.
Specifications updated for JM-HOMAN-4X2-CARGO-W20260526-L01
Your complete specification sheet
115 hp · 800 mm · 1061（4.2T）/CentralsingleReduction，Ratio：5.375
Engine and transmission
| Engine model | YC4FA115-33 |
|---|---|
| Engine displacement | 2.982 L |
| Engine output as listed | 115HP |
| Emission standard as listed | Euro II |
| Gearbox | WLY10H46 / 5 forword&1 reverse / Manuall / Without PTO |
Body and dimensions
| Body dimensions as listed | 4200×2050×800mm |
|---|---|
| Body equipment as listed | Thickness：Bottom 3mm, Side 1.5mm Material：Q235 / Carbon steel plate Patterned bottom plate, corrugated side plate |
Axles and chassis
| Wheelbase as listed | 3400mm |
|---|---|
| Steering | Left hand drive / Hydraulically assisted |
| Front axle | 1061（2.4T）/ Forging I-beam front axle |
| Rear axle and ratio | 1061（4.2T）/ Central single Reduction，Ratio：5.375 |
| Tyres | 7.00R16×7 / With one spare tire / Total 7 pieces |
| Chassis fuel tank | 120L （Iron） |
| Manufacturer load class as listed | 5T |
Cabin and equipment
| Cabin | 1880 cabin / Driver seat / 2 Passenger seats / A/C |
|---|---|
| Cabin equipment | Central locking / Electric doors and Windows |
Configuration reference: JM-HOMAN-4X2-CARGO-W20260526-L01Manufacturer model: ZZ1048D3414C1
Your quotation confirms the final specification, availability and delivery terms.
Choose the complete configuration that fits your load dimensions and handling needs. Share your cargo, route conditions and loading method to refine the specification.
