HOMAN Tippers

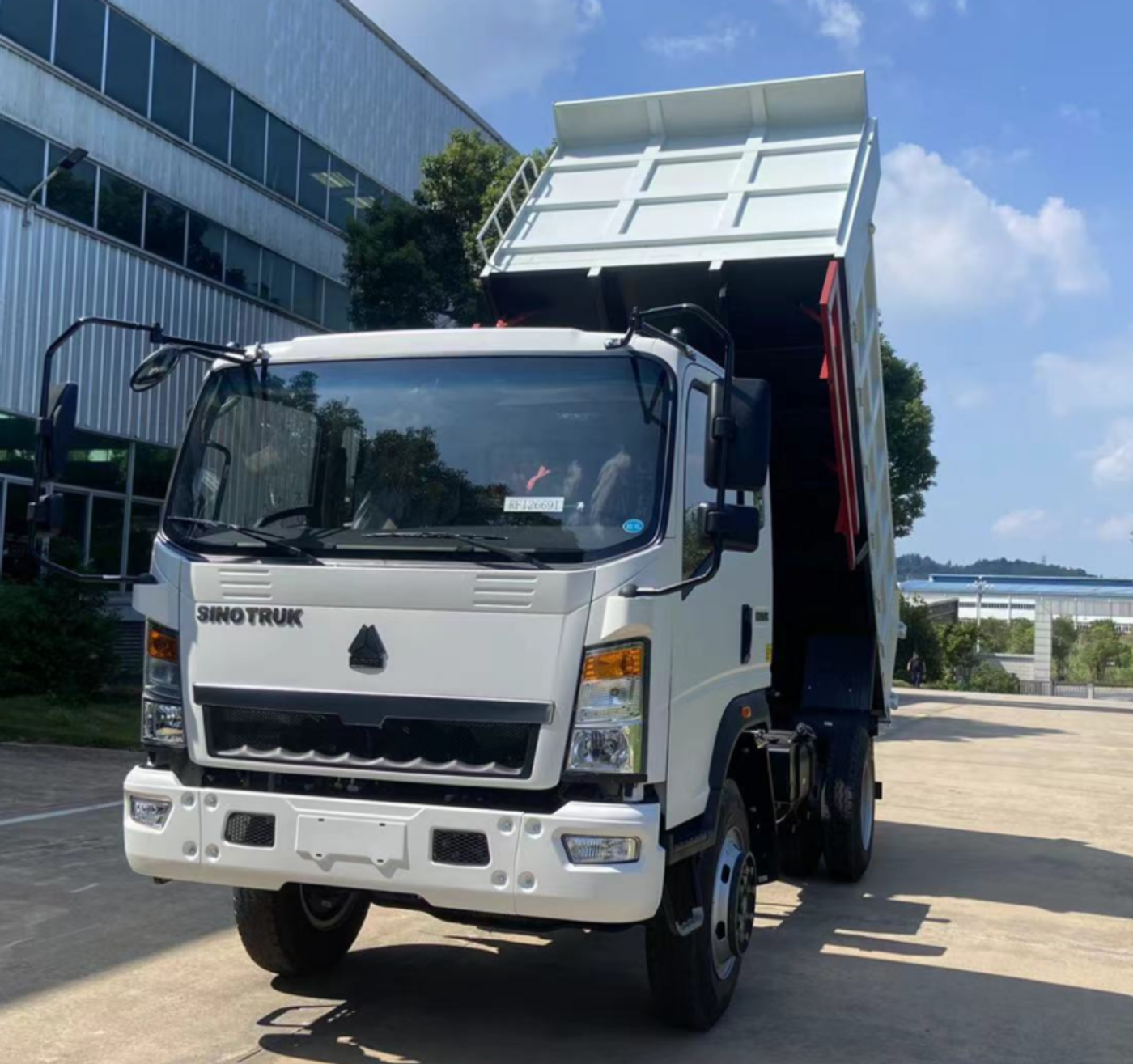

HOMAN 4×2 Tipper
A 4×2 tipper for materials deliveries and site work, with a mid-mounted lifting system.
Your selected vehicle and configuration will be included.
Specifications updated for JM-HOMAN-4X2-TIPPER-W20260526-L10
Your complete specification sheet
160 hp · 4200×2200×800+200mm · 153S（10.0T）/CentralsingleReduction/Ratio：6.33
Engine and transmission
| Engine model | YC4E160-33 |
|---|---|
| Engine displacement | 4.257 L |
| Engine output as listed | 160HP / 160PS |
| Emission standard as listed | Euro II |
Body and dimensions
| Body dimensions as listed | 4200×2200×800+200mm |
|---|---|
| Body equipment as listed | Thickness：Bottom 6mm, Side 4mm With 1 back single-door Middle lifting system |
Axles and chassis
| Steering | Left hand drive / Hydraulically assisted |
|---|---|
| Front axle | 145D（3.6T）/ Forging l-beam front axle |
| Rear axle and ratio | 153S（10.0T） / Central single Reduction / Ratio：6.33 |
| Tyres | 9.00R20 / With one spare tire / Total 7 pieces |
| Chassis fuel tank | 150L(Iron ) |
Cabin and equipment
| Cabin | 2080 cabin / 2 Passenger seats / 1 small sleeper / A/C |
|---|---|
| Cabin equipment | Central locking / Electric doors and Windows / Without Air deflector |
Configuration reference: JM-HOMAN-4X2-TIPPER-W20260526-L10Manufacturer model: ZZ3168G3615C1
Your quotation confirms the final specification, availability and delivery terms.
Review the body and chassis details below. The final gearbox and wheelbase are confirmed when specifying your vehicle; share your materials, loads and access conditions.
