HOMAN Vans

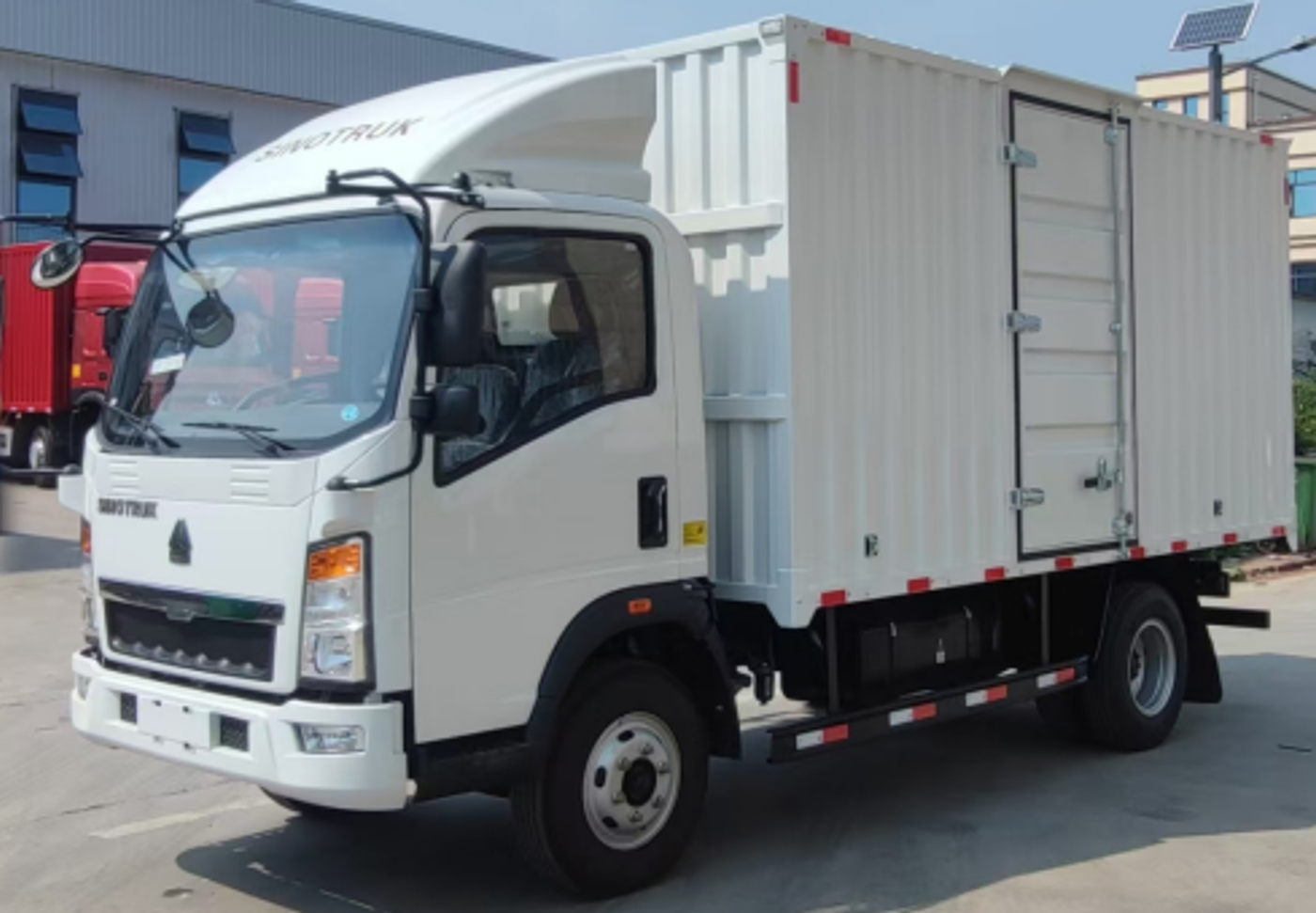

HOMAN 4×2 Box truck
An enclosed body for distribution and general deliveries, with two engine and body-size configurations.
Choose the power, then the features that change.
Your selected vehicle and configuration will be included.
Specifications updated for JM-HOMAN-4X2-VAN-W20260526-L02
Your complete specification sheet
115 hp · 2,050 mm · 1061（4.2T）/CentralsingleReduction，Ratio：5.375
Engine and transmission
| Engine model | YC4FA115-33 |
|---|---|
| Engine displacement | 2.982 L |
| Engine output as listed | 115HP |
| Emission standard as listed | Euro II |
| Gearbox | WLY10H46 / 5 forword&1 reverse / Manuall / Without PTO |
Body and dimensions
| Body dimensions as listed | 4200×2050×2050mm |
|---|---|
| Body equipment as listed | Thickness：Bottom 3mm, Side 1.5mm Material：Q235 / Carbon steel plate Patterned bottom plate, corrugated side plate |
Axles and chassis
| Wheelbase as listed | 3400mm |
|---|---|
| Steering | Left hand drive / Hydraulically assisted |
| Front axle | 1061（2.4T）/ Forging I-beam front axle |
| Rear axle and ratio | 1061（4.2T）/ Central single Reduction，Ratio：5.375 |
| Tyres | 7.00R16×7 / With one spare tire / Total 7 pieces |
| Chassis fuel tank | 120L （Iron） |
| Manufacturer load class as listed | 5T |
Cabin and equipment
| Cabin | 1880 cabin / Driver seat / 2 Passenger seats / A/C |
|---|---|
| Cabin equipment | Central locking / Electric doors and Windows / Air deflector |
Configuration reference: JM-HOMAN-4X2-VAN-W20260526-L02Manufacturer model: ZZ1048D3414C1
Your quotation confirms the final specification, availability and delivery terms.
Compare loading space, chassis and engine specifications. Confirm the required door arrangement and loading access with our team.
