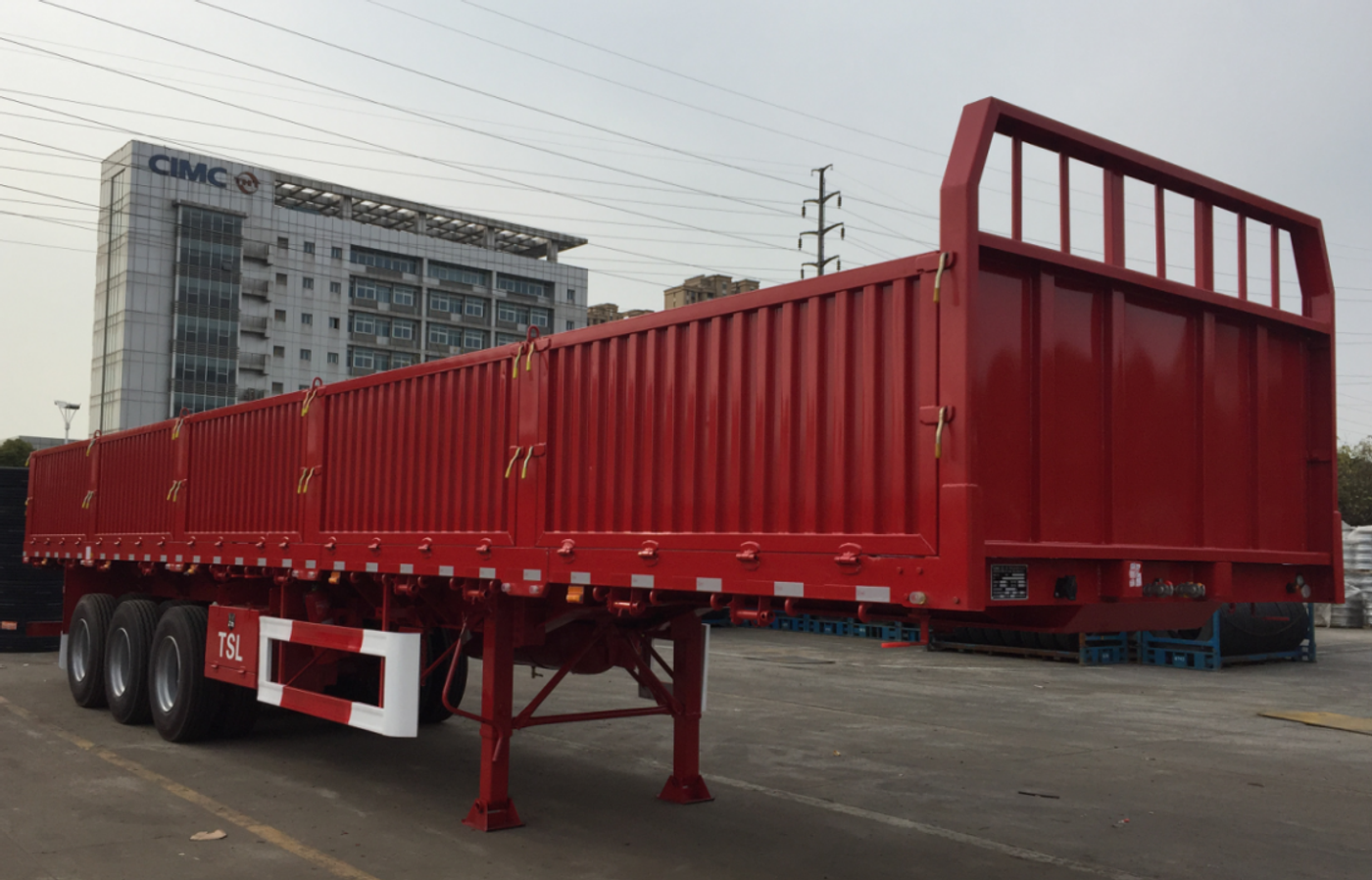

THT9480 Drop-side semi-trailer
Three drop-side configurations with 800 mm sides. Compare deck dimensions, suspension and finish for your cargo.
Choose the features for your configuration.
Your selected vehicle and configuration will be included.
Specifications updated for JM-TRAILER-THT9480-DROP-SIDE-W20260526-T03
Your complete specification sheet
12,600 × 2,650 mm · FUWA 13T*3 sets · JOST 50#, bolt on type
Body and dimensions
| Overall length × width | 12,600 × 2,650 mm |
|---|---|
| Front wall | 1400mm |
| Drop-side walls | Height 800 mm; thickness 1.5 mm |
| Side walls during container transport | Removal is not required as listed |
| Floor | 2.75mm check plate |
| Side guardrails | Left and right sides |
| Mudguards | Straight mudguard |
| Container locks | 12 sets of container locks |
| Rope hooks | Standard |
| Rope tighteners | Standard |
| Colour | By customer’s requirement |
| Coating | KTL electrophoresis + automatic powder spraying |
Axles and chassis
| Trailer axle set | FUWA 13T*3 sets |
|---|---|
| Kingpin | JOST 50#, bolt on type |
Other specifications
| Height configuration | Height can be adjusted to the tractor specification; final height requires confirmation. |
|---|---|
| Maximum payload as listed | 40000 kg |
| Approximate tare weight | 8,000 kg |
| Tyre specification | 315/80R22.5-18PR |
| Tyre equipment as listed | equip 13pcs per chassis including one spare tire; Tri-angle brand. |
| Rims | Type: 22.5*9.00, equip 13pcs per chassis including one spare rim; China brand. |
| Suspension | Mechanical 8-leaf suspension, 90*16mm |
| Landing gear | JOST E100 |
| Brake system | Dual air brake system,30/30 type, WABCO brake valve with no ABS. |
| Air brake connectors | Red and yellow gladhand valve |
| Electrical system | 24V, LED lights. |
| Water spray brake system | Nil. |
| Toolbox | 1 set |
| Spare tyre carriers | Equipped 2set per chassis |
Configuration reference: JM-TRAILER-THT9480-DROP-SIDE-W20260526-T03Manufacturer model: THT9480
Your quotation confirms the final specification, availability and delivery terms.
Select a complete trailer configuration to see its dimensions and equipment. Our team will confirm the coupling, tractor compatibility and permitted operating loads for your application.
