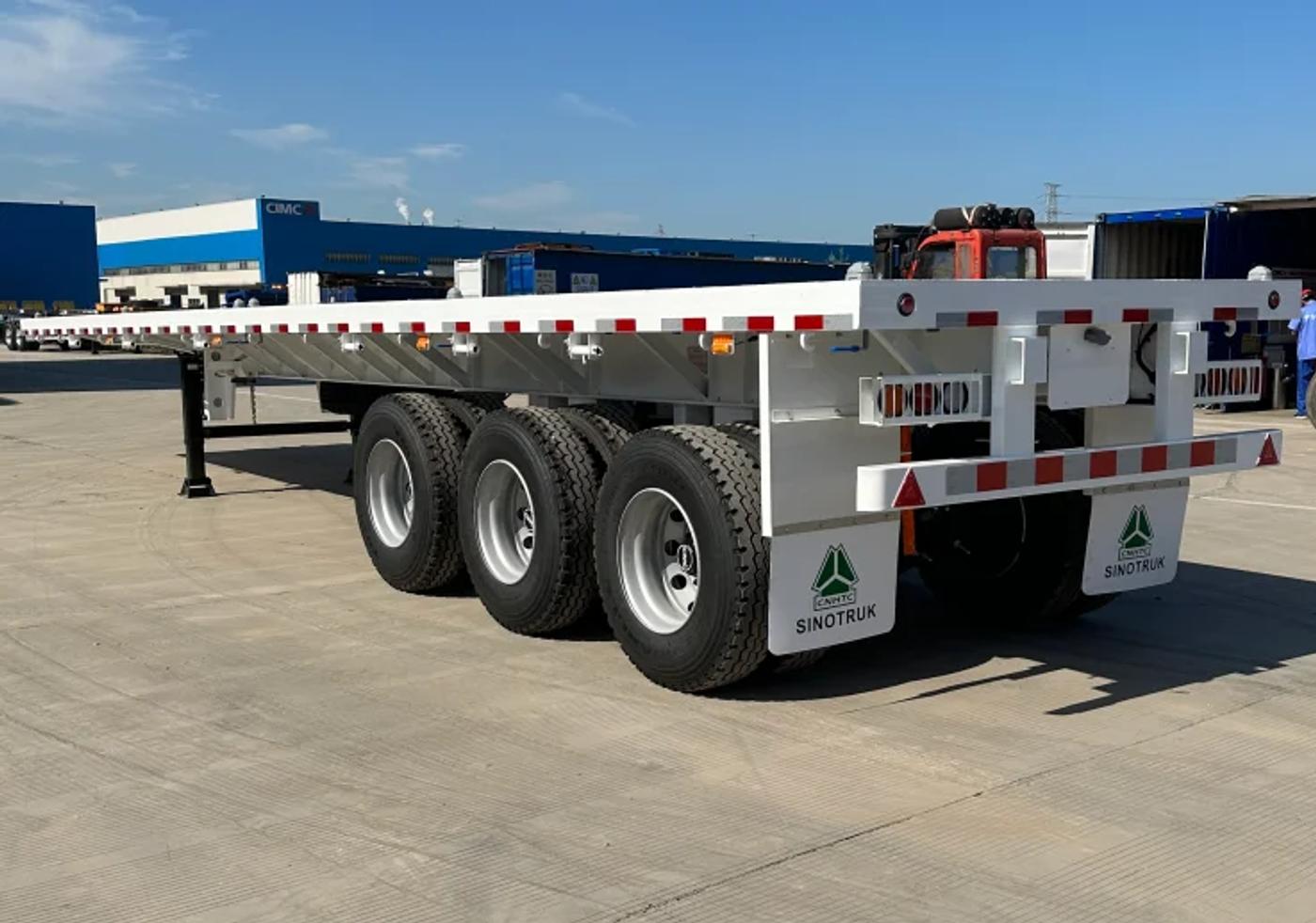

THT9480TJP Flatbed semi-trailer
Choose a flatbed trailer around your cargo, tractor and transport routes.
Choose the features for your configuration.
Your selected vehicle and configuration will be included.
Specifications updated for JM-TRAILER-THT9480TJP-FLATBED-W20260526-T01
Your complete specification sheet
12,404 × 2,480 mm · FUWA 13T*3 sets
Body and dimensions
| Overall length × width | 12,404 × 2,480 mm |
|---|---|
| Front wall | Nil. |
| Floor | 2.75mm check plate |
| Side guardrails | Right and left |
| Mudguards | Straight mudguard |
| Container locks | 12 sets of container locks |
| Rope hooks | Standard |
| Rope tighteners | Standard |
| Colour | By customer’s requirement |
| Coating | Primer+painting |
Axles and chassis
| Trailer axle set | FUWA 13T*3 sets |
|---|
Other specifications
| Height configuration | Height can be adjusted to the tractor specification; final height requires confirmation. |
|---|---|
| Maximum payload as listed | 40000 kg |
| Approximate tare weight | 7,200 kg |
| Tyre specification | 315/80R22.5-18PR |
| Tyre equipment as listed | equip 13pcs per chassis including one spare tire; Tri-angle brand. |
| Rims | Type: 9.0-22.5, equip 13pcs per chassis including one spare rim; China brand. |
| Suspension | Mechanical 8-leaf suspension, 90*16mm |
| Landing gear | JOST E100 |
| Brake system | Dual air brake system,30/30 type, WABCO brake valve with no ABS. |
| Air brake connectors | Red and yellow gladhand valve |
| Electrical system | 24V, LED lights. |
| Water spray brake system | Nil |
| Toolbox | 1 set |
| Spare tyre carriers | Equipped 2set per chassis |
Configuration reference: JM-TRAILER-THT9480TJP-FLATBED-W20260526-T01Manufacturer model: THT9480TJP
Your quotation confirms the final specification, availability and delivery terms.
