Semi-trailers Drop-side trailers

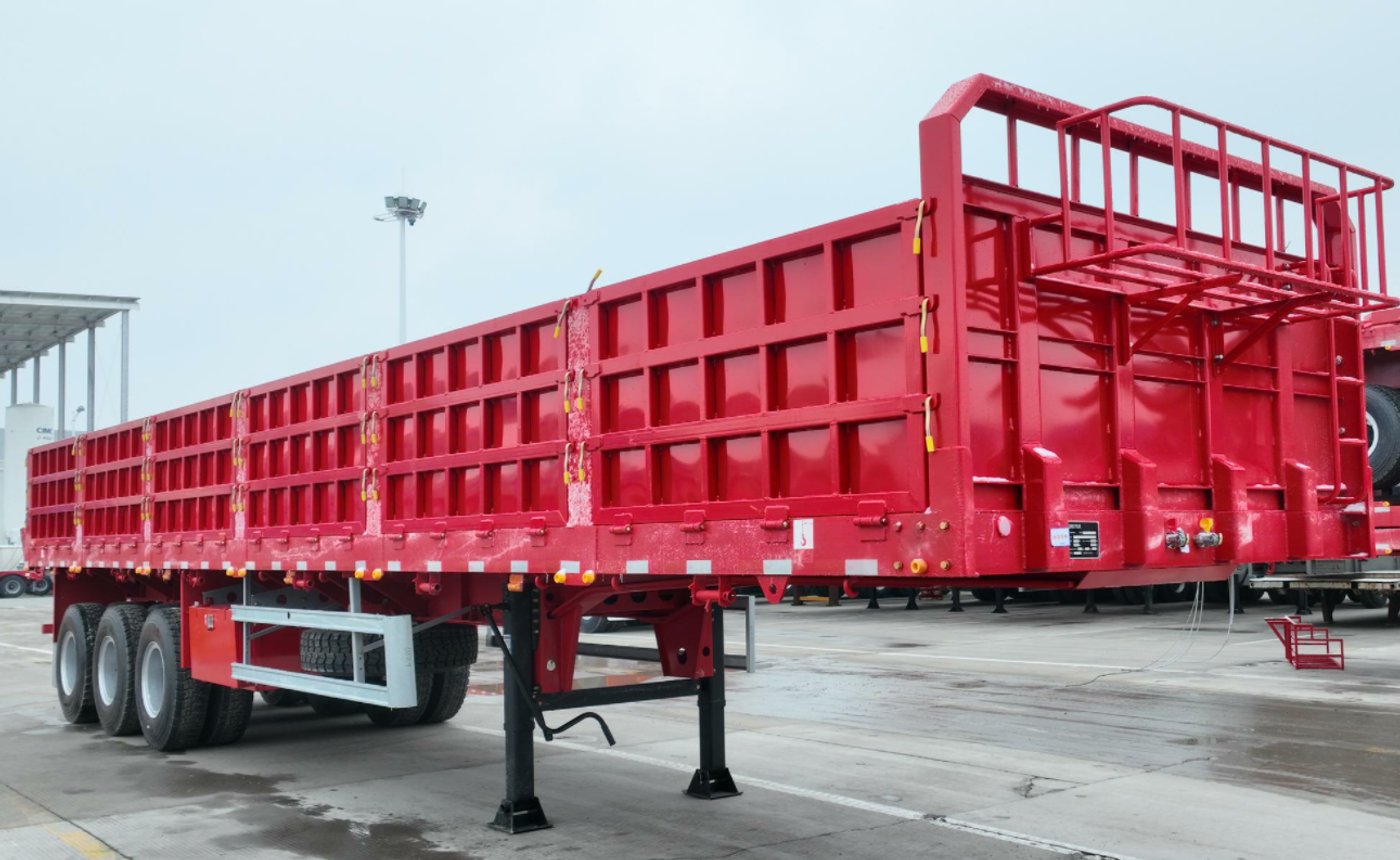

THT9983LBXTH Drop-side semi-trailer
A 13,000 × 2,660 mm trailer configuration with 1,000 mm sides and a CIMC axle set.
Your selected vehicle and configuration will be included.
Specifications updated for JM-TRAILER-THT9983LBXTH-DROP-SIDE-W20260526-T06
Your complete specification sheet
12,800×2,550×1,000 mm · 13,000 × 2,660 mm · China brand ，CIMC，20T*3 sets · Heavy duty JOST 90#, welded type
Body and dimensions
| Overall length × width | 13,000 × 2,660 mm |
|---|---|
| Internal body dimensions | 12,800×2,550×1,000 mm |
| Front wall | 1,400mm |
| Drop-side walls | Height 1,000 mm; thickness 2 mm |
| Floor | 4mm check plate. |
| Side guardrails | Left and right sides |
| Mudguards | Straight mudguard |
| Container locks | 8pcs twist locks, transport one 40ft container or two units of 20ft container. |
| Rope hooks | Standard |
| Rope tighteners | Standard |
| Colour | By customer’s requirement |
| Coating | KTL electrophoresis + automatic powder spraying |
Axles and chassis
| Trailer axle set | China brand ，CIMC，20T*3 sets |
|---|---|
| Kingpin | Heavy duty JOST 90#, welded type |
Other specifications
| Overall height as listed | 3,000 mm |
|---|---|
| Height configuration | Height can be adjusted to the tractor specification; final height requires confirmation. |
| Maximum payload as listed | 100000 kg |
| Approximate tare weight | 12,200（±5%） kg |
| Tyre specification | 12.00R20-18PR |
| Tyre equipment as listed | equip 13pcs per chassis including one spare tire; |
| Rims | Type: 8.5*20, equip 13pcs per chassis including one spare rim. |
| Suspension | Mechanical 12-leaf suspension,120*16mm |
| Landing gear | TSU 28T |
| Brake system | Dual air brake system 30/30 type, China brand brake valve with no ABS. |
| Air brake connectors | Red and yellow gladhand valve；with quick connector |
| Electrical system | 24V, LED lights. |
| Water spray brake system | Optional |
| Toolbox | 1 set |
| Spare tyre carriers | Equipped 2set per chassis |
Configuration reference: JM-TRAILER-THT9983LBXTH-DROP-SIDE-W20260526-T06Manufacturer model: THT9983LBXTH
Your quotation confirms the final specification, availability and delivery terms.
Review the frame, running gear and coupling specification for your cargo. Final operating loads, coupling height and tractor compatibility require confirmation; axle ratings alone do not determine a permitted payload.
