HOWO-TX Crane trucks

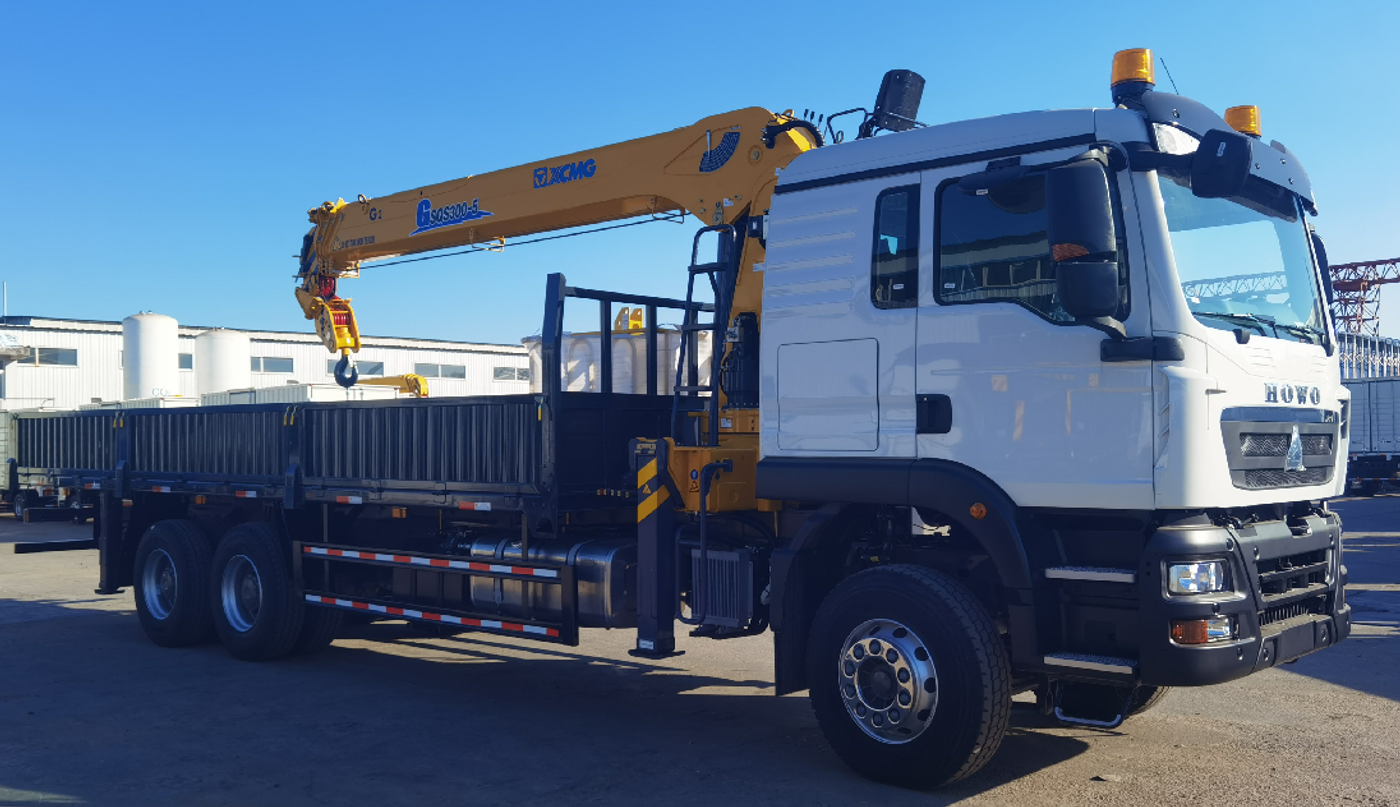

HOWO-TX 6×4 Crane truck
Combine transport and on-site lifting with a straight-arm or knuckle-boom crane on a 6×4 chassis.
Choose the power, then the features that change.
Your selected vehicle and configuration will be included.
Specifications updated for JM-TX-6X4-CRANE-W20260526-H14
Your complete specification sheet
371 hp · 600 mm · MCX16ZG
Engine and transmission
| Engine model | WD615.47 |
|---|---|
| Engine displacement | 9.726 L |
| Engine output as listed | 371HP / 273kW |
| Emission standard as listed | Euro II |
| Gearbox | HW19710 | Manual | 10 forwards & 2 reverse | SINOTRUK Brand |
| Selected final drive ratio | 4.803 |
Body and dimensions
| Body dimensions as listed | 6500x2300x600mm |
|---|---|
| Body equipment as listed | Thickness: Bottom 4mm | side 2mm Crane model: XCMG | SQS300K Form：Straight Arm Crane capacity: Maximum 12T@2.5m |
Axles and chassis
| Wheelbase as listed | 5800mm |
|---|---|
| Front axle | VGD95 | Drum Brake | 9500 KG |
| Rear axle | MCX16ZG | Drum brake | 2*16000KG |
| Frame | Double-layer frame (8+8/300) | Important part with partial treble-laye fram |
| Suspension | Heavy-duty version | Number of leaf spring (Front 10 pieces | Rear 12pieces) |
| Steering | BOSCH - LHD |
| Chassis fuel tank | 400L | Aluminum |
| Selected tyres | 12.00R20 tube (dual purpose tread pattern/18PR) |
Cabin and equipment
| Cabin | TX-F | A/C | Single sleeper | 3-stage all steel bumper with high ground clearance |
|---|---|
| Selected cabin equipment | Cab bilateral overhead alarm lamps; Driver's Air Seat |
Configuration reference: JM-TX-6X4-CRANE-W20260526-H14Manufacturer model: ZZ1257N584GB1
Your quotation confirms the final specification, availability and delivery terms.
Compare the XCMG SQS300K straight-arm and SQ12ZK3Q knuckle-boom configurations. Each has a stated maximum lift of 12 T at 2.5 m; capacity changes with reach. Share your loads and lifting radius so the correct load chart can be confirmed.
