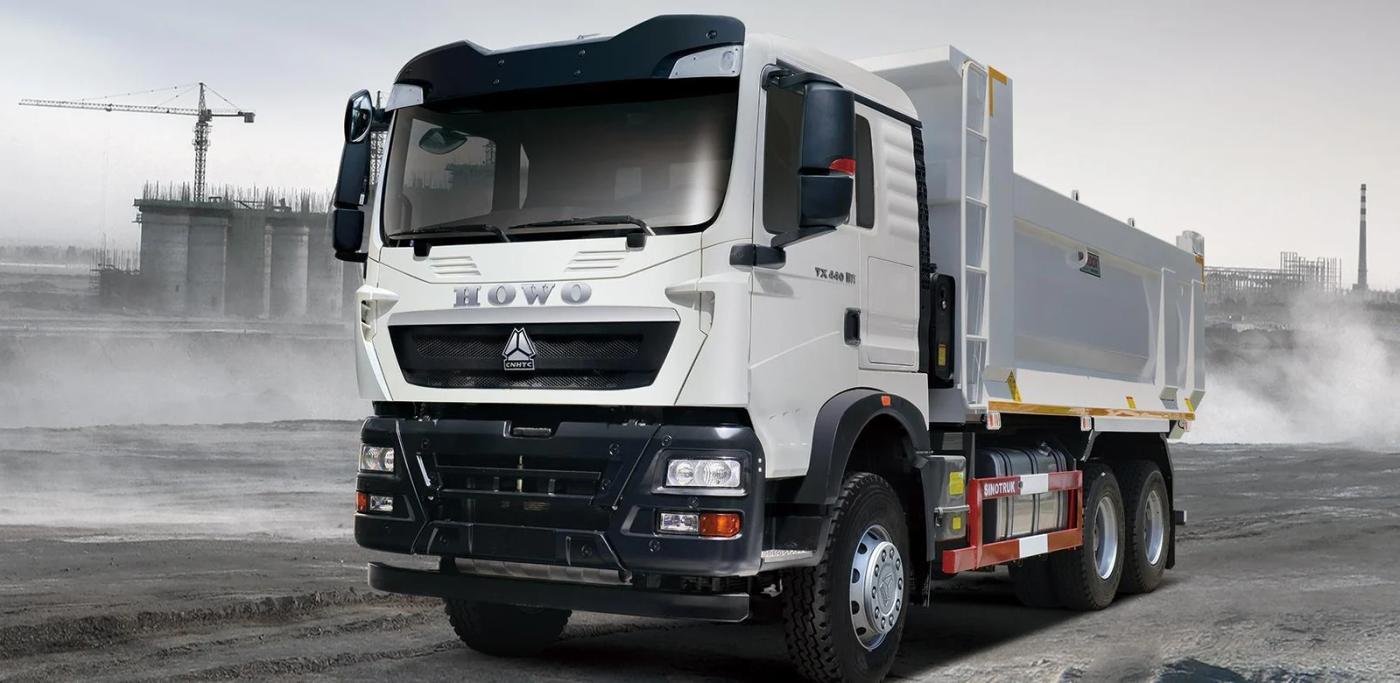

HOWO-TX 6×4 Tipper
A capable foundation for construction and material transport.
Choose the power, then the features that change.
Your selected vehicle and configuration will be included.
Specifications updated for JM-TX-6X4-TIPPER-B1500
Your complete specification sheet
371 hp · 1,500 mm · MCP16
Engine and transmission
| Engine model | WD615.47 |
|---|---|
| Engine displacement | 9.726 L |
| Maximum engine output | 371 hp (273 kW) at 2200 rpm |
| Maximum torque | 1500 Nm at 1100-1600 rpm |
| Emission standard stated in brochure | Euro II |
| Transmission | HW19710; 10 forward and 2 reverse gears |
Body and dimensions
| Tipper body dimensions | 5600 x 2300 x 1500 mm |
|---|
Axles and chassis
| Front axle | VGD 95 |
|---|---|
| Rear axle | MCP16 |
| Fuel tank capacity | 400 L |
| Tyres | 12.00R20 |
Cabin and equipment
| Cabin | TX-F cab; MAN-TGA design; air conditioning |
|---|
Configuration reference: JM-TX-6X4-TIPPER-B1500Manufacturer model: ZZ3257N384GB1
Your quotation confirms the final specification, availability and delivery terms.
