HOWO-TX Crane trucks

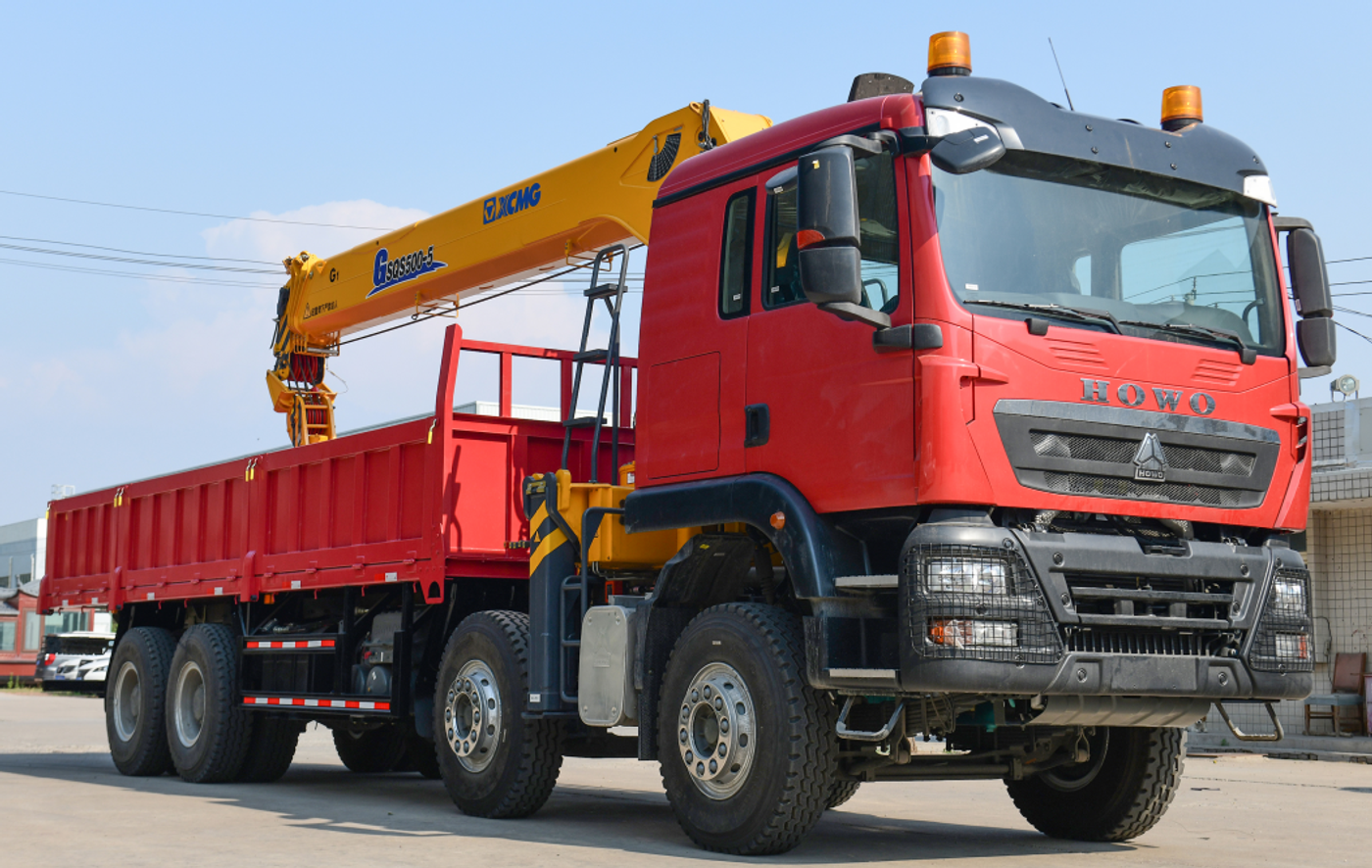

HOWO-TX 8×4 Crane truck
An 8×4 transport and lifting platform with straight-arm and knuckle-boom crane configurations.
Choose the power, then the features that change.
Your selected vehicle and configuration will be included.
Specifications updated for JM-TX-8X4-CRANE-W20260526-H18
Your complete specification sheet
371 hp · 600 mm · MCX16ZG
Engine and transmission
| Engine model | WD615.47 |
|---|---|
| Engine displacement | 9.726 L |
| Engine output as listed | 371HP / 273kW |
| Emission standard as listed | Euro II |
| Gearbox | HW19710 | Manual | 10 forwards & 2 reverse | SINOTRUK Brand |
| Selected final drive ratio | 4.803 |
Body and dimensions
| Body dimensions as listed | 7500x2300x600mm |
|---|---|
| Body equipment as listed | Thickness: Bottom 5mm | side 2mm Crane model: XCMG | SQS450B Form：Straight Arm Crane capacity: Maximum 18T@2.5m |
Axles and chassis
| Wheelbase as listed | 4600mm |
|---|---|
| Front axle | VGD95 | Drum Brake | 2*9500 KG |
| Rear axle | MCX16ZG | Drum brake | 2*16000KG |
| Frame | Double-layer frame (8+8/300) | Important part with partial treble-laye fram |
| Suspension | Heavy-duty version | 11/11/12 | Number of leaf spring (Front 11+11 pieces | Rear 12pieces) |
| Steering | BOSCH - LHD |
| Chassis fuel tank | 400L | Aluminum |
| Selected tyres | 12.00R20 tube (dual purpose tread pattern/18PR) |
Cabin and equipment
| Cabin | TX-F | A/C | Single sleeper | 3-stage all steel bumper with high ground clearance |
|---|---|
| Selected cabin equipment | Cab bilateral overhead alarm lamps; Driver's Air Seat |
Configuration reference: JM-TX-8X4-CRANE-W20260526-H18Manufacturer model: ZZ1317N466GB1
Your quotation confirms the final specification, availability and delivery terms.
The SQS450B straight-arm configuration lists 18 T at 2.5 m; the SQZ360AII knuckle-boom configuration lists 18 T at 2 m. These are crane ratings at the stated radius, not vehicle payloads. Confirm the lifting chart against your working reach and loads.
