HOWO-TX Oil tankers

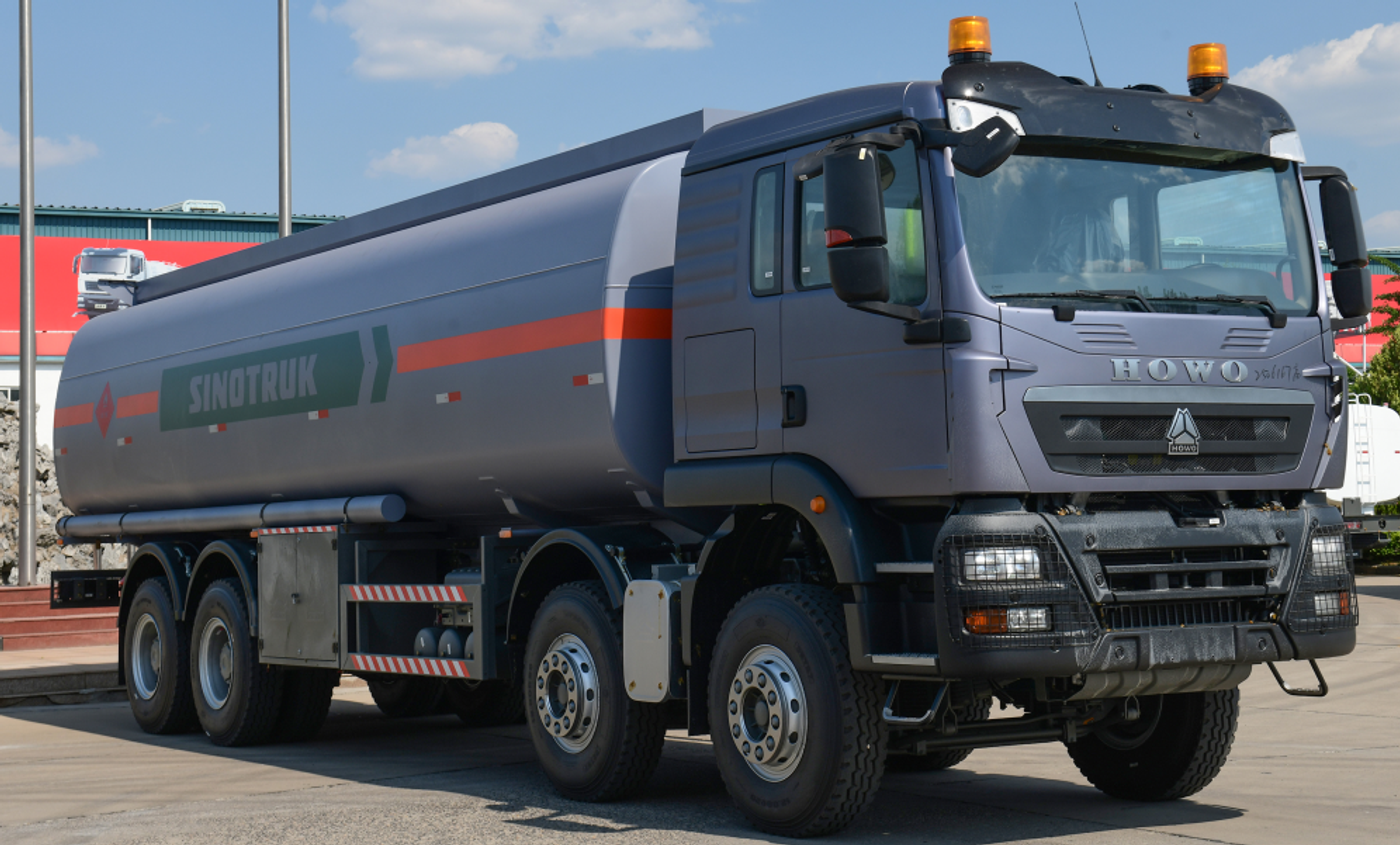

HOWO-TX 8×4 Fuel tanker
A 35 m³ tanker configuration for fuel distribution, built on a four-axle HOWO-TX chassis.
Your selected vehicle and configuration will be included.
Specifications updated for JM-TX-8X4-OIL-TANK-W20260526-H16
Your complete specification sheet
371 hp · MCX16ZG
Engine and transmission
| Engine model | WD615.47 |
|---|---|
| Engine displacement | 9.726 L |
| Engine output as listed | 371HP / 273kW |
| Emission standard as listed | Euro II |
| Gearbox | HW19710 | Manual | 10 forwards & 2 reverse | SINOTRUK Brand |
| Selected final drive ratio | 4.803 |
Body and dimensions
| Body tank volume as listed | 35 m³ |
|---|---|
| Body equipment as listed | Oil pump:1 unit | copper gear oil pump Oil pump model :76YCB-40 | maximum flow rate: 40 m³/h Oil gun:2 sets | Left&Right Flow meter:2 unit | DN40 | Elliptical Gear Pipeline system:2.5'' Oil-conveying pipe:2.5″/ 2*3m* |
Axles and chassis
| Wheelbase as listed | 4600mm |
|---|---|
| Front axle | VGD95 | Drum Brake | 2*9500 KG |
| Rear axle | MCX16ZG | Drum brake | 2*16000KG |
| Frame | Double-layer frame (8+8/300) | Important part with partial treble-laye fram |
| Suspension | Heavy-duty version | 11/11/12 | Number of leaf spring (Front 11+11 pieces | Rear 12pieces) |
| Steering | BOSCH - LHD |
| Chassis fuel tank | 400L | Aluminum |
| Selected tyres | 12.00R20 tube (dual purpose tread pattern/18PR) |
Cabin and equipment
| Cabin | TX-F | A/C | Single sleeper | 3-stage all steel bumper with high ground clearance |
|---|---|
| Selected cabin equipment | Cab bilateral overhead alarm lamps; Driver's Air Seat |
Configuration reference: JM-TX-8X4-OIL-TANK-W20260526-H16Manufacturer model: ZZ1317N466GB1
Your quotation confirms the final specification, availability and delivery terms.
Review the tank and transfer equipment below. Tell us the product carried, required delivery rate and unloading arrangements to define your tanker specification.
