HOWO-TX Water bowsers

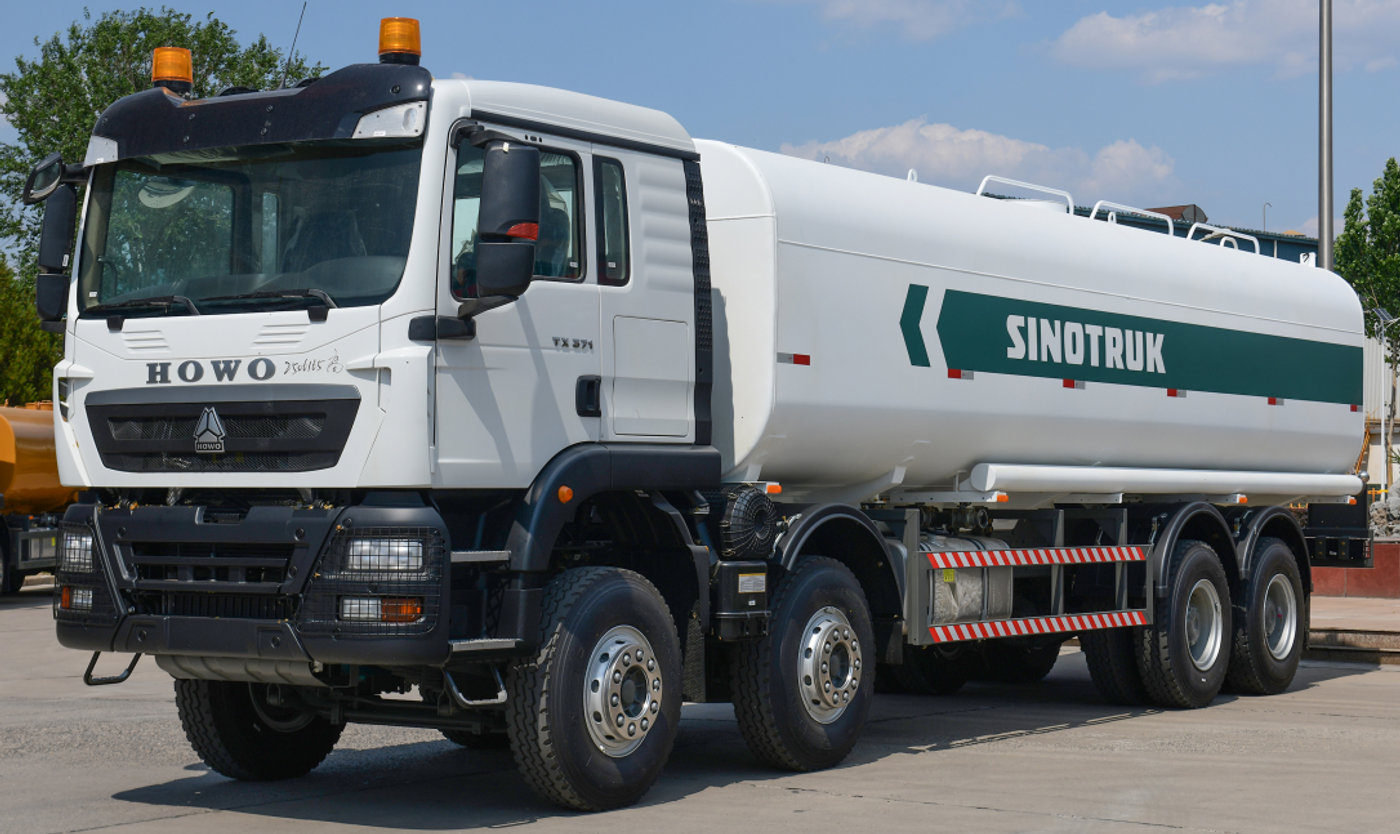

HOWO-TX 8×4 Water bowser
A 35 m³ water-bowser configuration for site water supply and large-area spraying.
Your selected vehicle and configuration will be included.
Specifications updated for JM-TX-8X4-SPRINKLER-W20260526-H17
Your complete specification sheet
371 hp · MCX16ZG
Engine and transmission
| Engine model | WD615.47 |
|---|---|
| Engine displacement | 9.726 L |
| Engine output as listed | 371HP / 273kW |
| Emission standard as listed | Euro II |
| Gearbox | HW19710 | Manual | 10 forwards & 2 reverse | SINOTRUK Brand |
| Selected final drive ratio | 4.803 |
Body and dimensions
| Body tank volume as listed | 35 m³ |
|---|---|
| Body equipment as listed | Type of sprinkling：Front spray | & Rear spray Tank body thickness： 6mm Shell cover thickness： 6mm With a rear platform | the rear platform is equipped with a high-pressure water cannon and a rear sprinkler system. Pressure discharge | self-suction | self-flow discharge With two 6-meter suction pipes. |
Axles and chassis
| Wheelbase as listed | 4600mm |
|---|---|
| Front axle | VGD95 | Drum Brake | 2*9500 KG |
| Rear axle | MCX16ZG | Drum brake | 2*16000KG |
| Frame | Double-layer frame (8+8/300) | Important part with partial treble-laye fram |
| Suspension | Heavy-duty version | 11/11/12 | Number of leaf spring (Front 11+11 pieces | Rear 12pieces) |
| Steering | BOSCH - LHD |
| Chassis fuel tank | 400L | Aluminum |
| Selected tyres | 12.00R20 tube (dual purpose tread pattern/18PR) |
Cabin and equipment
| Cabin | TX-F | A/C | Single sleeper | 3-stage all steel bumper with high ground clearance |
|---|---|
| Selected cabin equipment | Cab bilateral overhead alarm lamps; Driver's Air Seat |
Configuration reference: JM-TX-8X4-SPRINKLER-W20260526-H17Manufacturer model: ZZ1317N466GB1
Your quotation confirms the final specification, availability and delivery terms.
The listed configuration includes front and rear spraying and a rear water cannon. Plan the pump, filling arrangements and spray coverage around your site’s daily needs.
